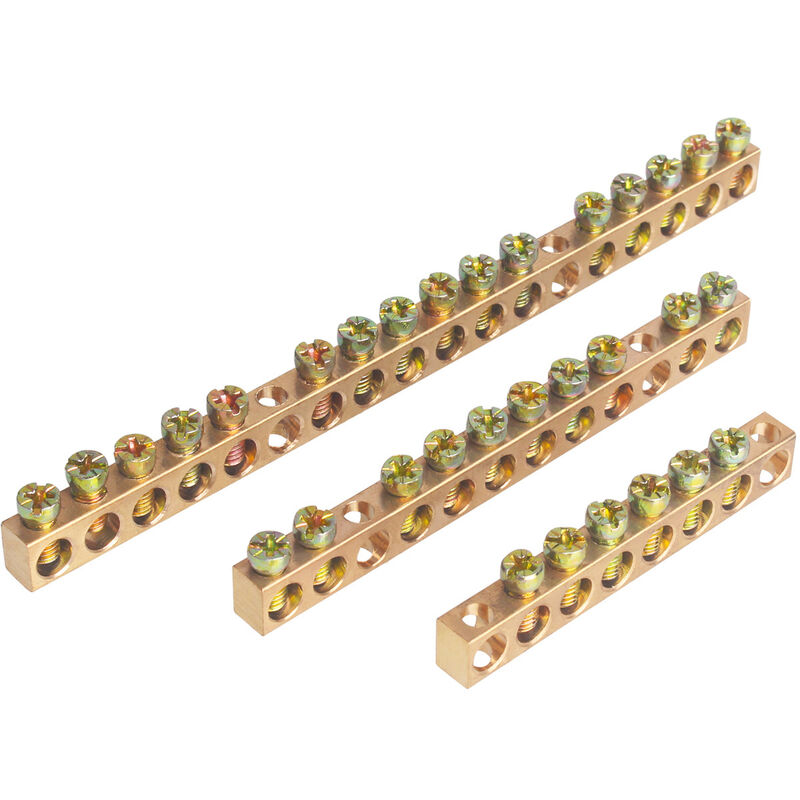

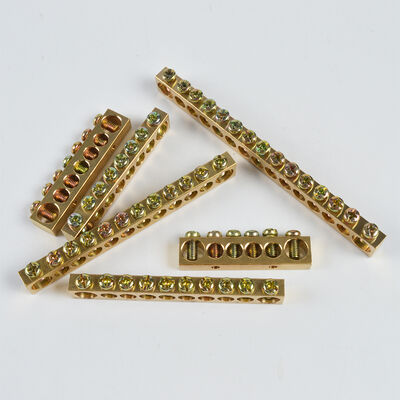

What is a Copper Earth Bar?
A copper earth bar, also commonly referred to as a ground bar, ground busbar, or earth busbar, is a critical component in electrical grounding systems. It is a terminal block made of conductive material that serves as a central collection and distribution point for grounding (earthing) conductors. Its primary function is to connect multiple ground wires from various circuits or equipment to a single point, which is then connected to the earth electrode. This ensures that all metallic, non-current-carrying parts of an electrical installation are at the same potential, providing a safe path for fault currents to dissipate into the ground and protecting both personnel and equipment from electric shock and voltage surges.
Material
The primary material is high-grade copper, prized for its superior electrical conductivity and resistance to corrosion.
1. High-Conductivity Copper (usually 99.9% pure)
2. C110 or C11000 Electrolytic Tough Pitch (ETP) Copper
3. C101 Oxygen-Free Copper (for high-performance applications)
Surface Treatment
Surface treatments are applied to enhance durability, prevent oxidation, and improve electrical connections.
1. Bare Copper (natural finish)
2. Tin-Plated (prevents corrosion and inhibits the formation of insulating oxides)
3. Nickel-Plated (for high-temperature environments)
4. Silver-Plated (for maximum conductivity in specialized applications)
Specifications
Copper earth bars are manufactured in a variety of dimensions and configurations to suit different current-carrying capacities and installation needs.
| Parameter |
Typical Range |
| Length |
50 mm – 1000 mm |
| Width |
10 mm – 100 mm |
| Thickness |
2 mm – 10 mm |
| Hole Size |
M4 – M12 |
| Hole Spacing |
Customizable |
| Current Capacity |
Depends on size and material |
Application Areas
These bars are essential in any system requiring a reliable and organized earthing connection.
1. Electrical switchboards and distribution panels
2. Telecommunication and data centers
3. Industrial manufacturing plants and machinery
4. Power generation and substation grounding
5. Renewable energy systems (solar and wind farms)
6. Commercial and residential building electrical services
Excellent Case
A major data center needed to upgrade its server racks to handle higher power loads. The existing grounding was disorganized and posed a safety risk. By installing a series of tin-plated copper earth bars within each rack, all equipment grounds could be connected to a single, secure point. This organized the wiring and ensured a reliable path for fault currents, significantly improving the safety and stability of the entire data center.
In conclusion, the copper earth bar is a fundamental device for electrical safety, providing a central and organized connection point for all grounding conductors. Its simple design, combined with high-quality materials, ensures effective fault current dissipation and long-term system reliability.
